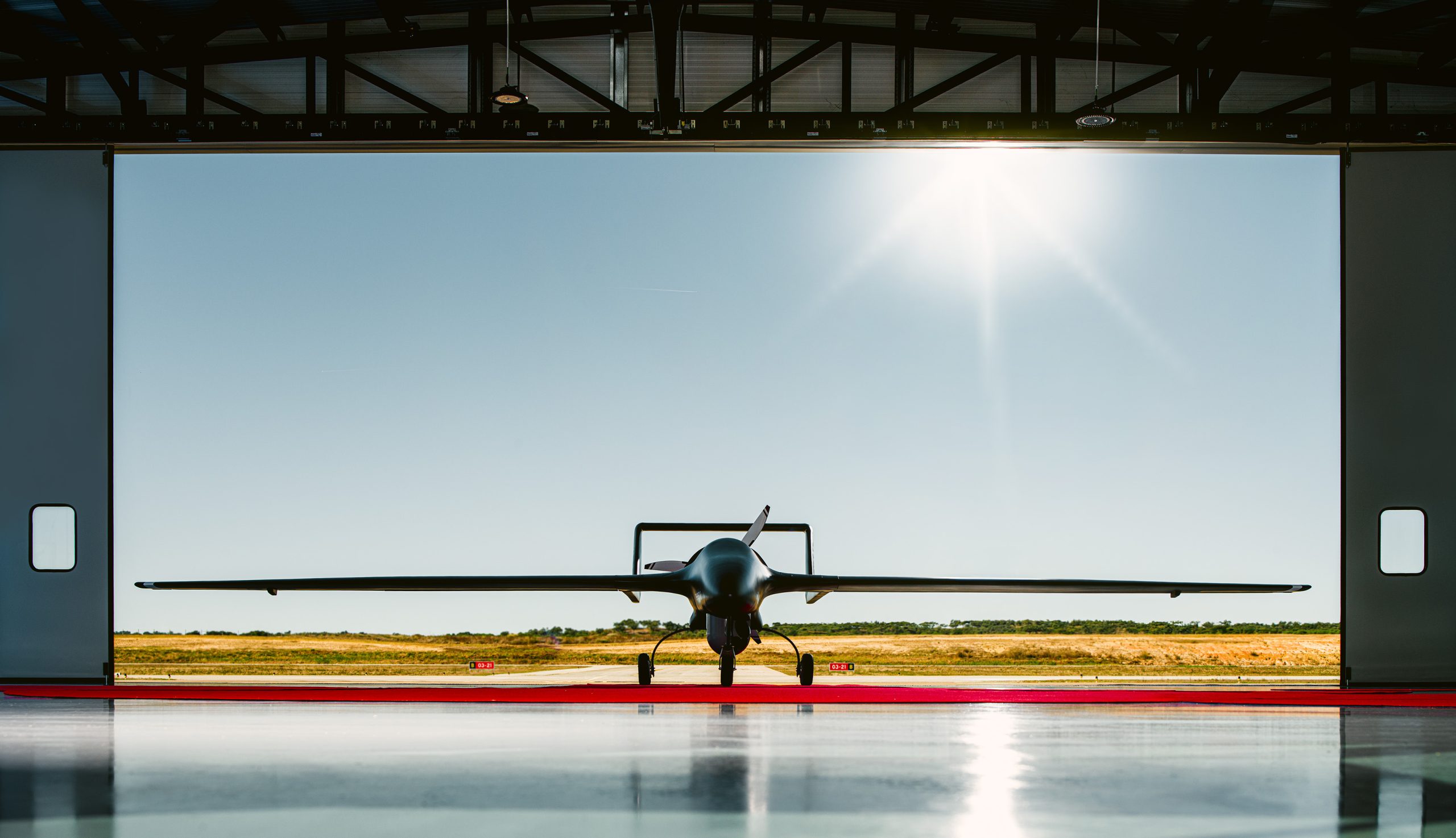

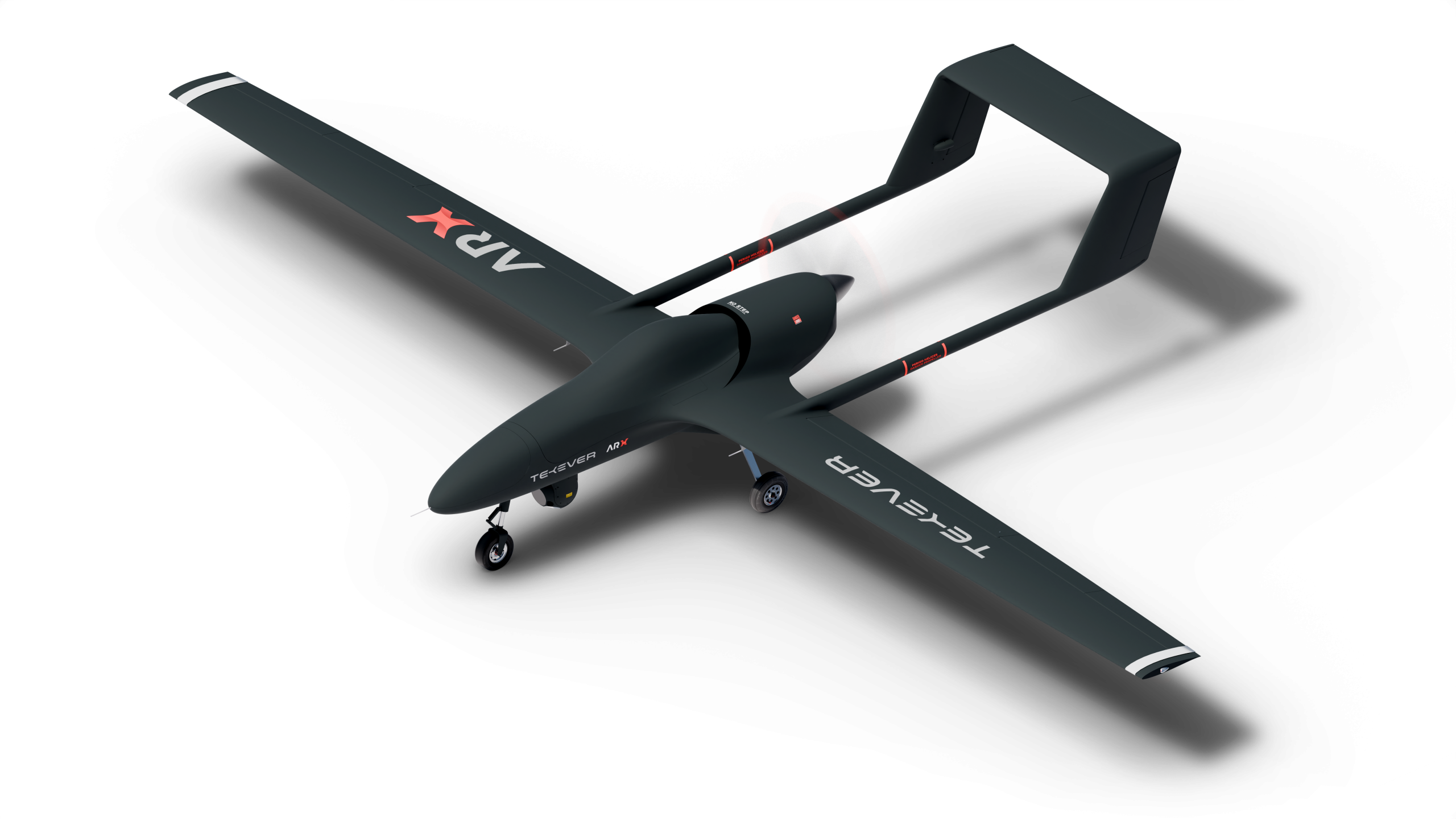

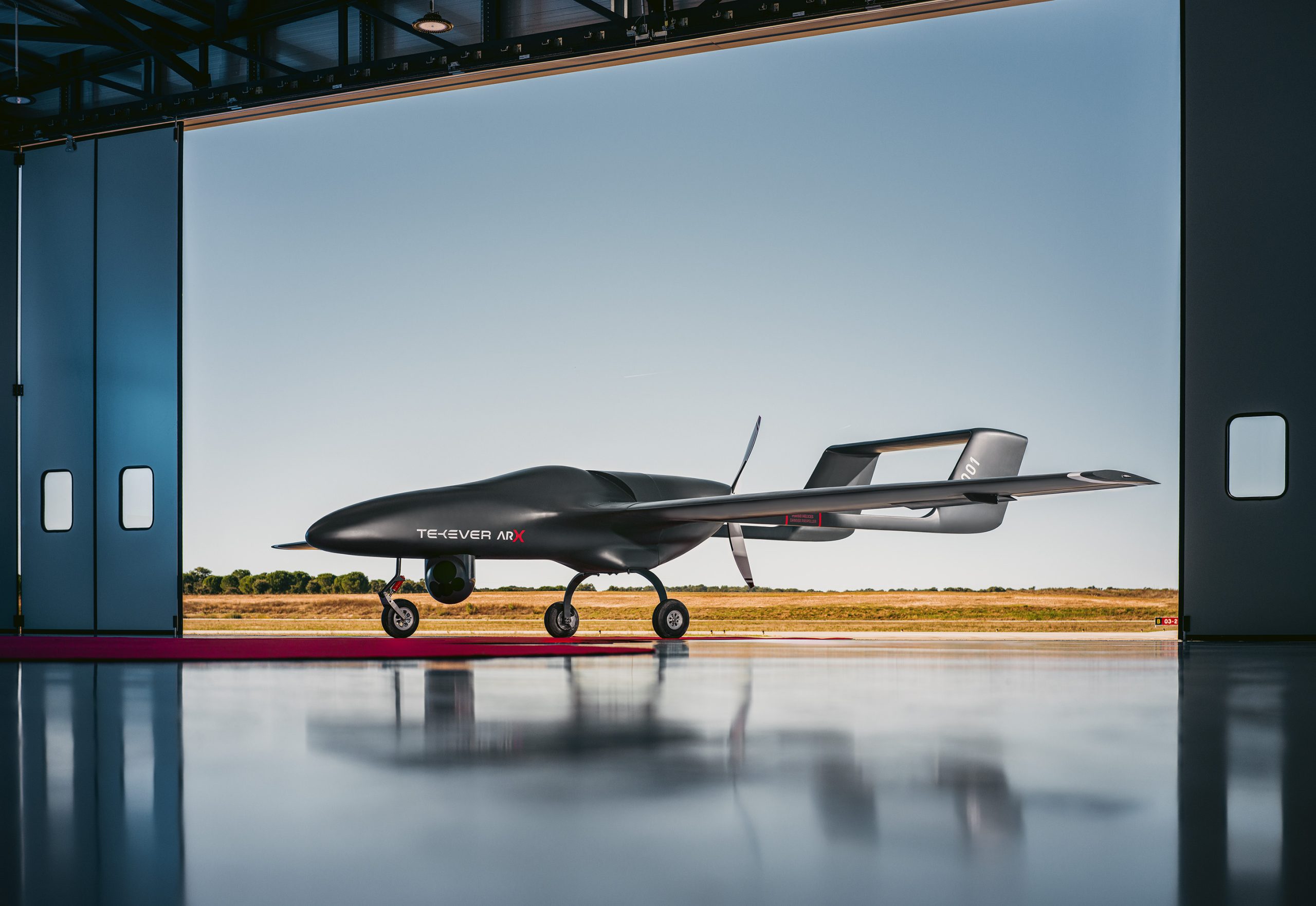

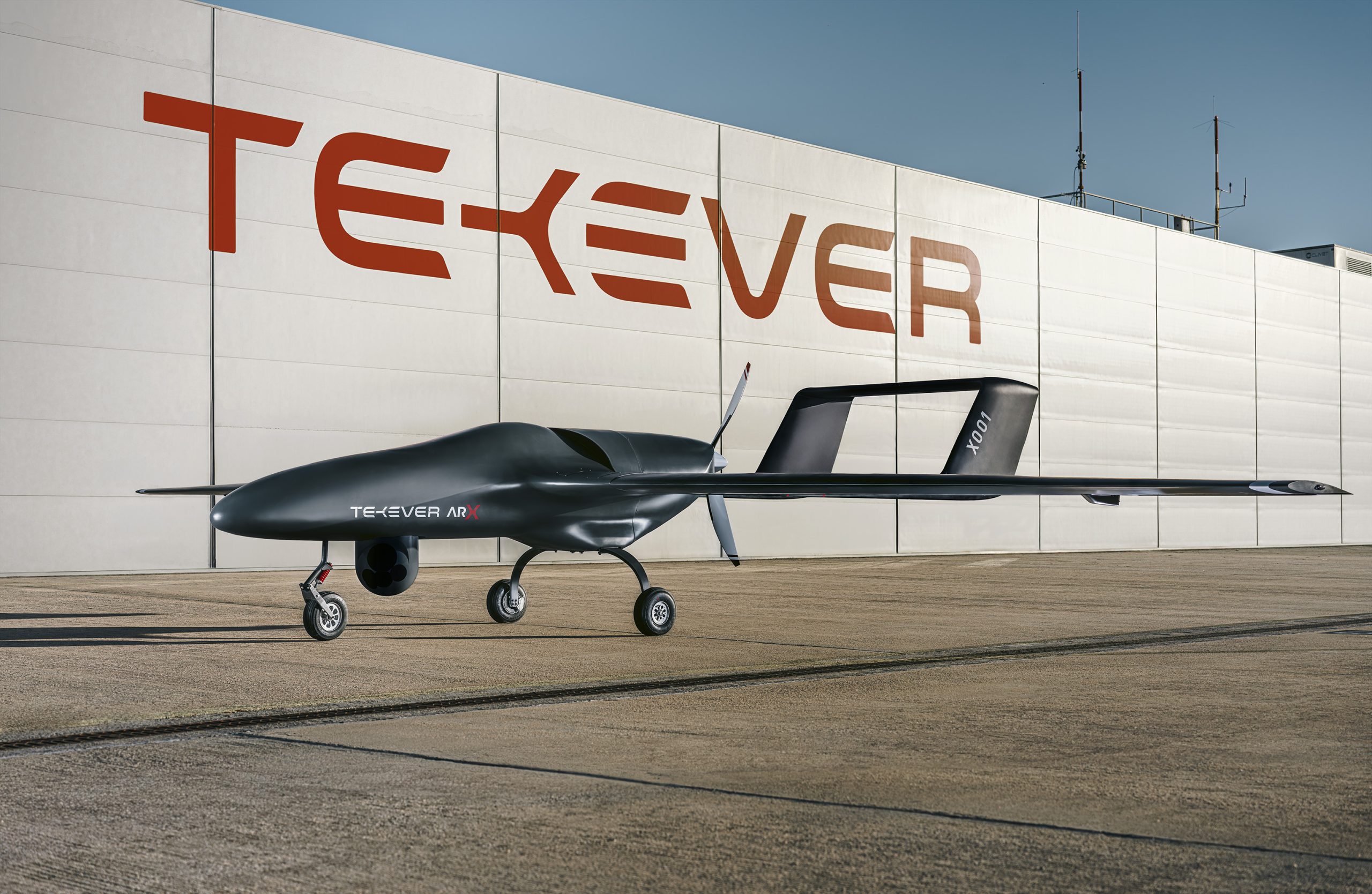

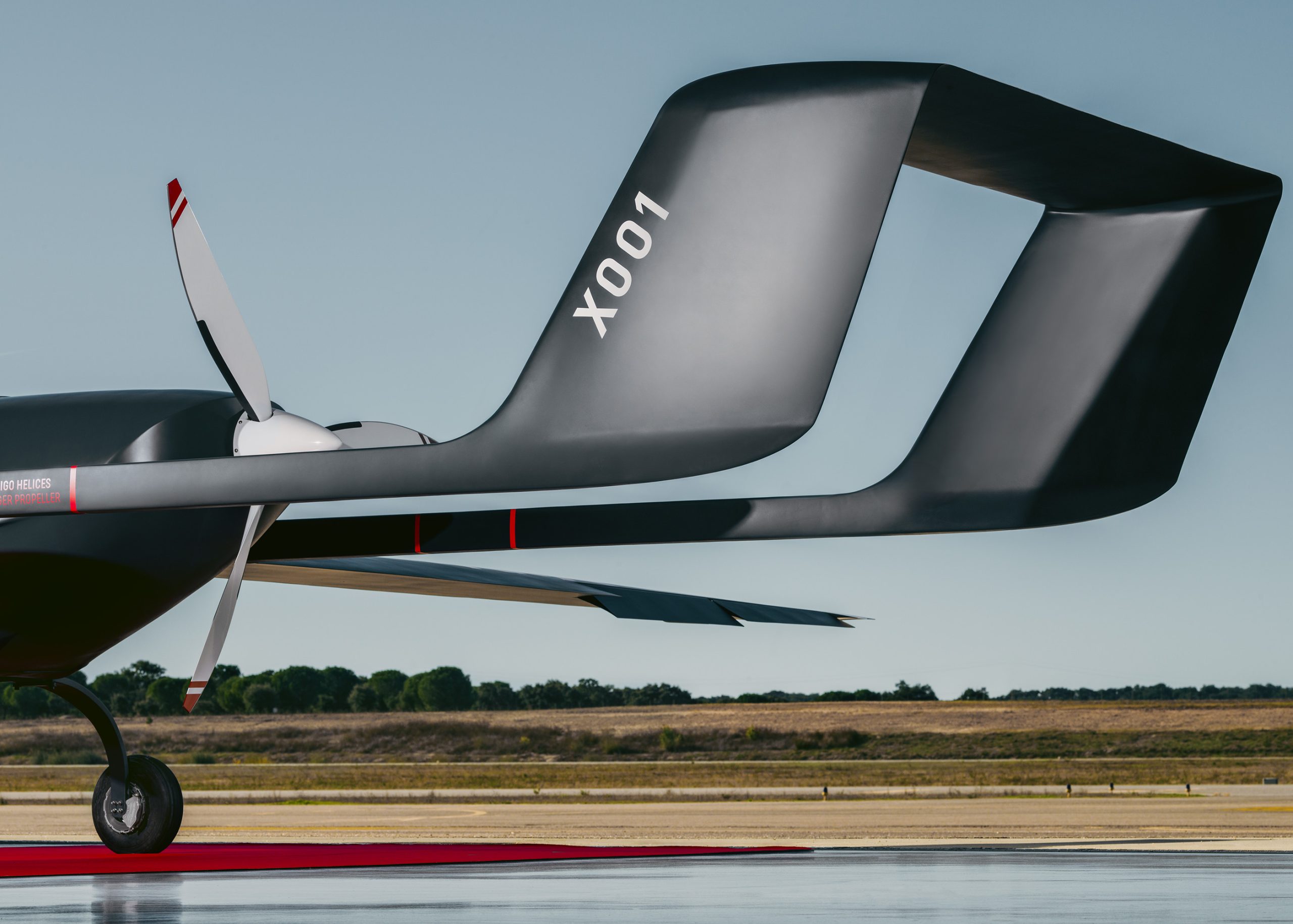

TEKEVER ARX
The Game Changer
The TEKEVER ARX promises to revolutionize its class by offering a combination of long-range endurance, advanced onboard AI/ML capabilities, SATCOM and mesh connectivity, and readiness for GNSS-denied environments.
GAMALINK
SDR-based Inter-Satellite Link (ISL) for flexible in-orbit connectivity
GAMALINK is a RF communications platform, optimised for in-orbit connectivity. It supports point-to-point and multi-node packet-oriented communications and offers seamless ranging, range rate and time correlation/synchronisation capability together with data exchange. It is the perfect enabler for formation flying, swarm missions or radio science applications.
Communications Range
10 cm to 1000+ k
Frequency Band
S-band (2.2 to 2.45 GHz)
RF Output Power
100mW to 4W
Net Data Rate
10kbps to 500kbps (adaptive)
Supply Voltage
22V to 32V unregulated
Data Interfaces
2 x RS-422 (up to 460800 baud) 2 x PPS input
Ranging Accuracy
Better than 50 cm (3-sigma)
Range Rate Accuracy
Better than 1 mm/s with 60s of integration time
Time Correlation Accuracy
Better than 1 ms (at interface level)
Radiation Protection
Qualified for TID up to 20krad SEE/SEL tolerant.
CONFIGURATION OPTIONS
GAMALINK is available in two different configurations:
• Deep Space version, with a robust mechanical housing, providing additional radiation shielding.• New Space version, more compact and streamlined design, compatible with the CubeSat form factor.
Deep Space
Dimensions
60 x 120 x 65 mm
Mass
910g
New Space
Dimensions
96 x 94 x 45 mm
Mass
450g

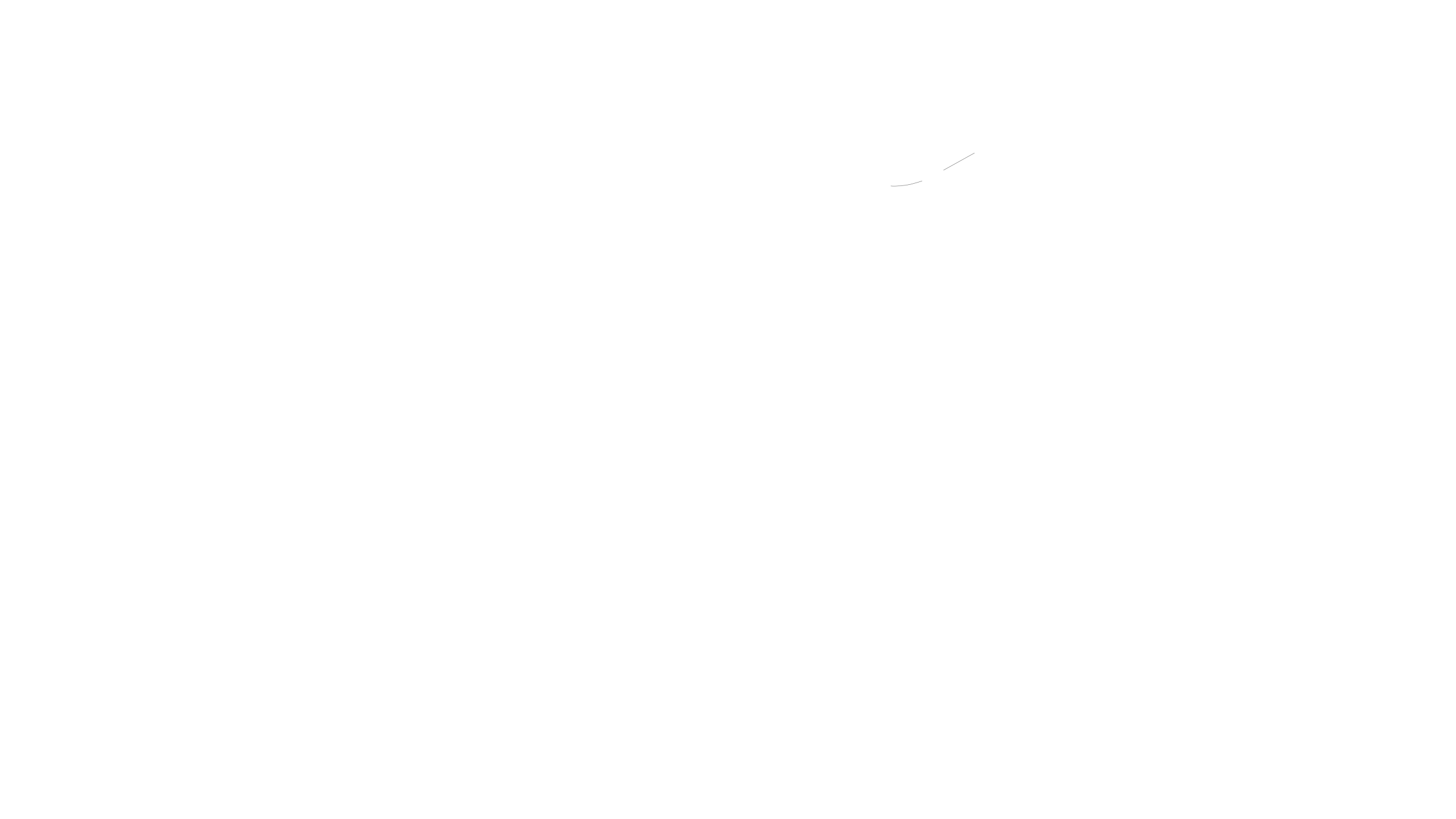

Dimensions
12m x 6.8m
Cruise Speed
68 kt
Comms Range
unlimited
MTOW
600 kg
Payload Capacity
150kg
Endurance
up to 30h
Maximum Speed
171 kt
Range
+ 1000 Km
Recovery
Runway
Launch
Runway
Sensors
EO/IR, MS/HS, LIDAR, AIS, ADSB,
SAR SIGINT/COMINT/ELINT

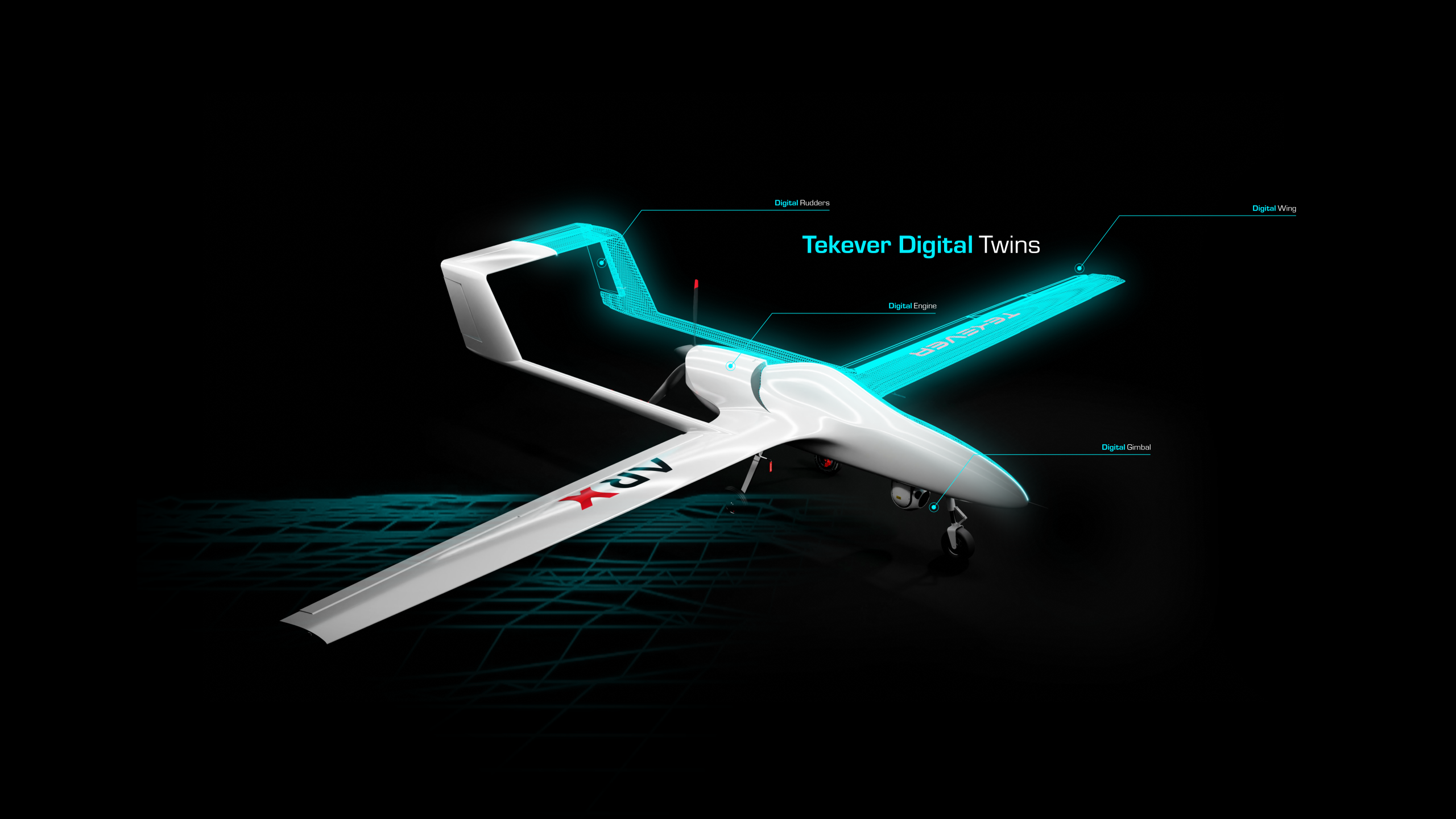

TEKEVER ARX DIGITAL TWIN:
TEKEVER ARX will arrive on the market with a Digital Twin.The ARX Digital Twin is a digital model of our system that serves as an effectively indistinguishable digital counterpart for practical purposes, such as simulation, integration, testing, monitoring, and maintenance. With this innovation, TEKEVER will facilitate all processes of operator training, sensor integration, and maintenance.
ARX

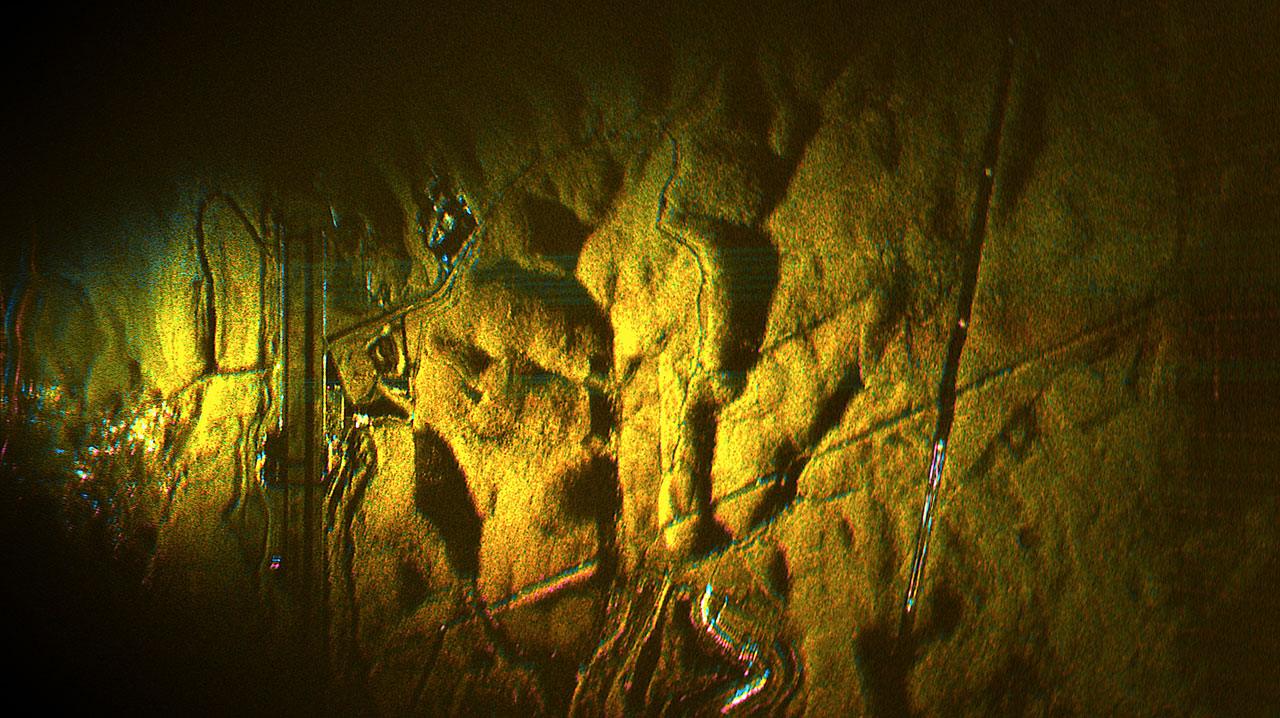

SARX - Synthetic Aperture RadarIt will operate in a range of frequencies that give the product performance, sensitivity and definition characteristics that are uncommon on the market. Furthermore, the aim is to compact and miniaturize this type of lower sensor, reduce power consumption, making this product ideal for a growing market (surveillance RPAS). It targets the world market.
New features
• Greater bandwith;
• Polarimetry;
• Greater reach;
• Most compact SAR on the market;
• Onboard processing;
• Images generated in almost real time.

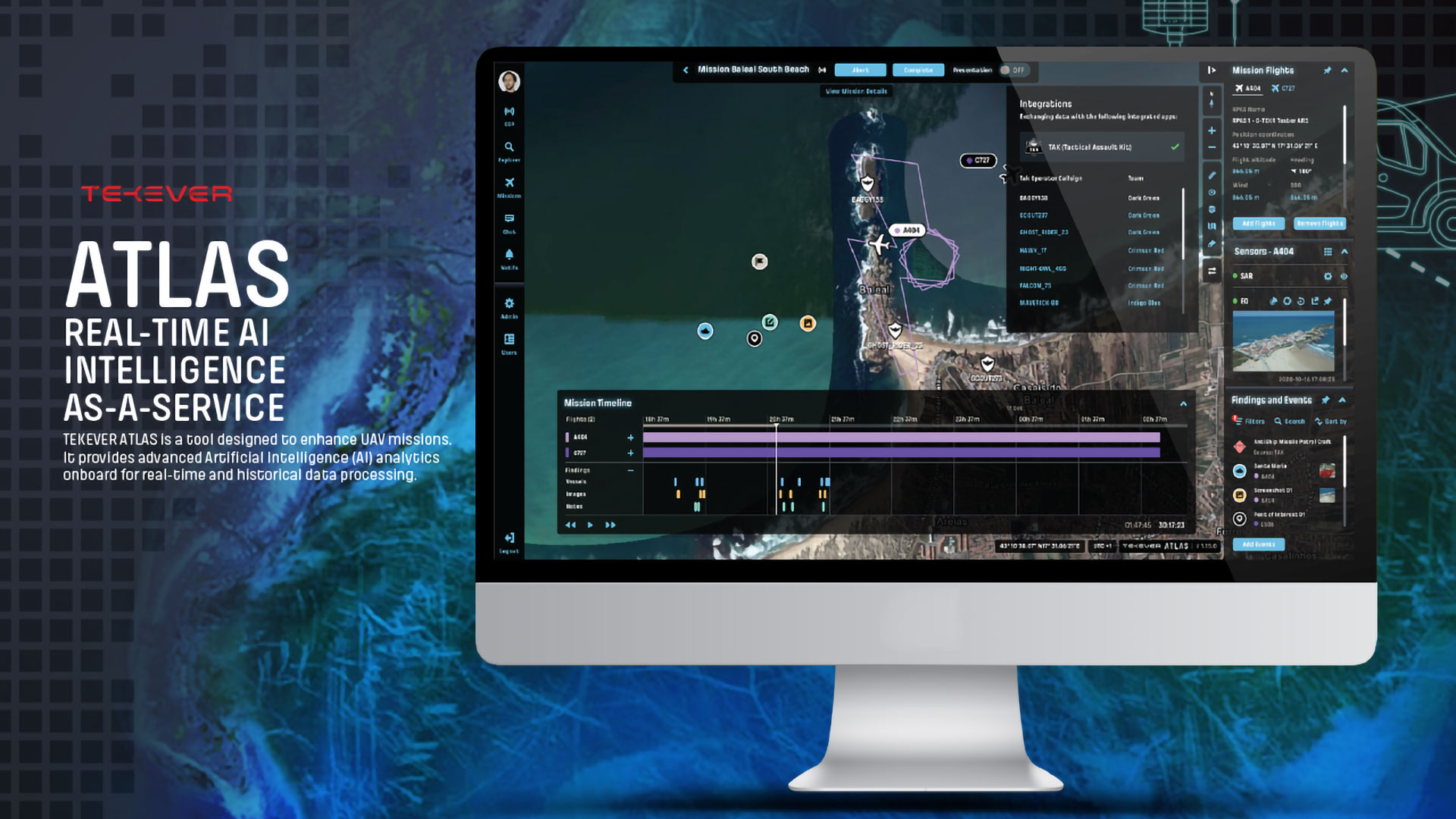

ATLAS 2
ATLAS 2 - Integrated Multi-UAV Mission Management System and Mission Analytics Exploitation• The mission of ATLAS 2 is to help achieve situational awareness, decision superiority and greater mission success.
• Web tool designed for decision makers supporting UAS operations.
• Visual data center and real-time imaging, telemetry and mission replay.
• Vertical integration with our GCS, but also with third-party suppliers of information, software and even other UAV suppliers.
• Our AI models can provide automatic alerts, insights and intelligence to support decision-making and increase situational awareness that goes beyond human capabilities.

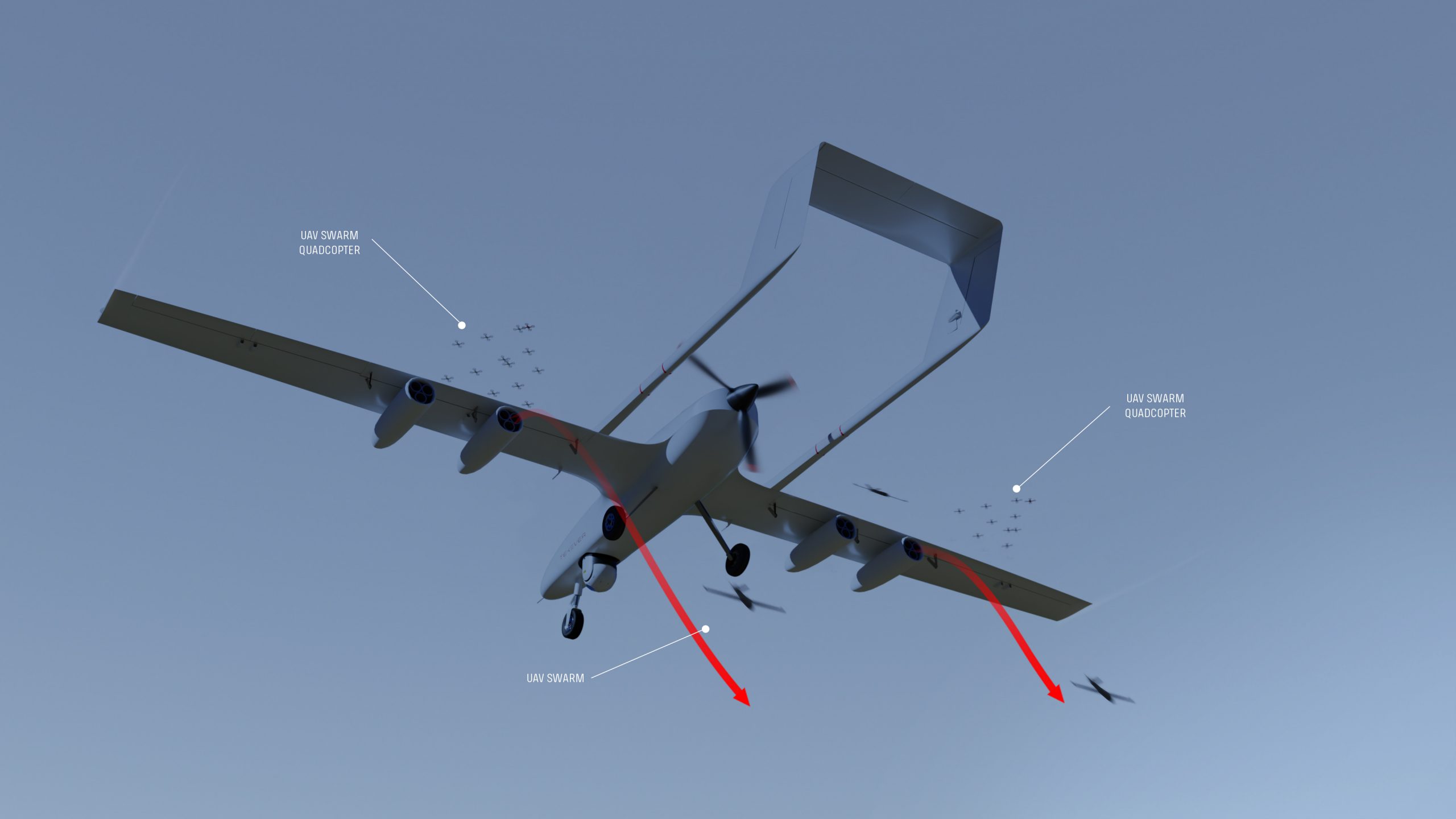

SWARM
Autonomous deployment of multiple aerial robots from the ARX drone, for close-range operations.Expanding ARX capabilities:
• Increased reach and maneuverability, Enhanced precision, Reduced risk, Increased flexibility, Cost-effectiveness, reduced environmental impact.
Potential applications:
• Mapping and surveillance, Search and rescue, Emergency communication network, Remote inspection, Package delivery, Wildlife monitoring
TEKEVER ARX DIGITAL TWIN:
TEKEVER ARX will arrive on the market with a Digital Twin.The ARX Digital Twin is a digital model of our system that serves as an effectively indistinguishable digital counterpart for practical purposes, such as simulation, integration, testing, monitoring, and maintenance. With this innovation, TEKEVER will facilitate all processes of operator training, sensor integration, and maintenance.
ARX
SARX - Synthetic Aperture RadarIt will operate in a range of frequencies that give the product performance, sensitivity and definition characteristics that are uncommon on the market. Furthermore, the aim is to compact and miniaturize this type of lower sensor, reduce power consumption, making this product ideal for a growing market (surveillance RPAS). It targets the world market.
New features
• Greater bandwith;
• Polarimetry;
• Greater reach;
• Most compact SAR on the market;
• Onboard processing;
• Images generated in almost real time.
ATLAS 2
ATLAS 2 - Integrated Multi-UAV Mission Management System and Mission Analytics Exploitation• The mission of ATLAS 2 is to help achieve situational awareness, decision superiority and greater mission success.
• Web tool designed for decision makers supporting UAS operations.
• Visual data center and real-time imaging, telemetry and mission replay.
• Vertical integration with our GCS, but also with third-party suppliers of information, software and even other UAV suppliers.
• Our AI models can provide automatic alerts, insights and intelligence to support decision-making and increase situational awareness that goes beyond human capabilities.
SWARM
Autonomous deployment of multiple aerial robots from the ARX drone, for close-range operations.Expanding ARX capabilities:
• Increased reach and maneuverability, Enhanced precision, Reduced risk, Increased flexibility, Cost-effectiveness, reduced environmental impact.
Potential applications:
• Mapping and surveillance, Search and rescue, Emergency communication network, Remote inspection, Package delivery, Wildlife monitoring
ARX The Game Changer
If you’d like to learn more about this product, download the brochure to explore its full features, detailed specifications, and complete technical data.
